Description

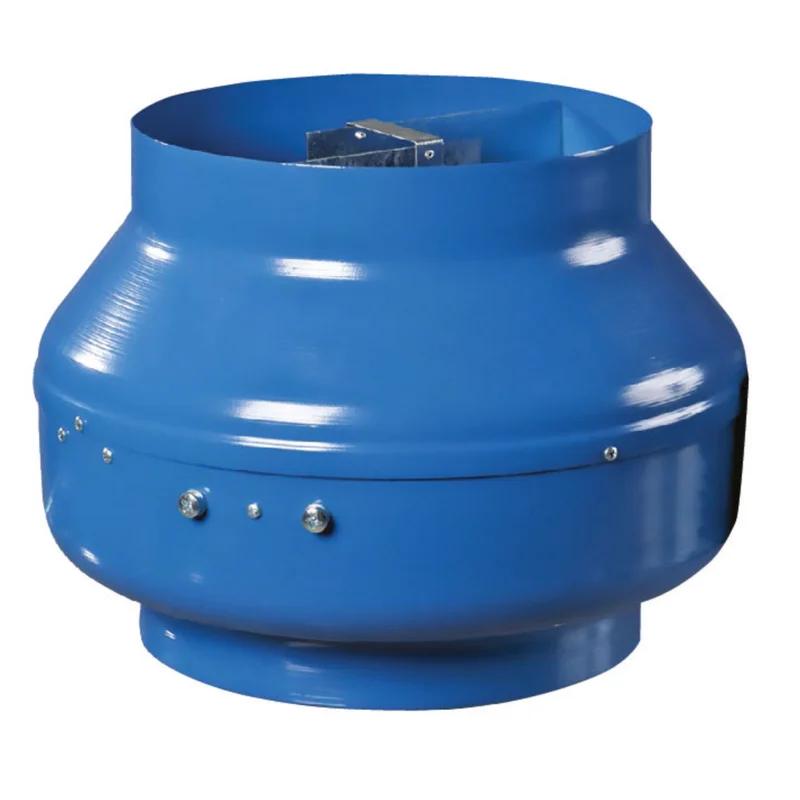

AXS EC In-Line Duct Fans are designed for residential, commercial and light industrial ventilation applications. The highly efficient backward-curved impeller can develop significant pressure. Moreover, the in-line configuration simplifies installation.
With its efficient electronically commutated (EC) motorized impeller, AXS EC in-line duct fans set new standards for efficiency and versatility. AXS EC fans incorporate a corrosion-resistant steel housing with a polymer coating. They are available in sizes from 4” to 12”, with airflows ranging from 151 cfm to 539 cfm.
Features and Benefits:
- Corrosion-resistant, durable steel housing with a polymer coating
- 120V, 60 Hz operation; single phase
- Easy to install – mounting brackets included
- Suitable for air temperatures up to 105 F
- Optional pre-wired with 120V power cord
- Speed controllable 0-10 V
- External rotor motor design results in superior motor cooling and durability
- Rated for continuous operation
- Permanently lubricated ball bearing motor for maintenance-free operation
- Automatic reset thermal overload protection
- Fan and motor are precision balanced for quiet and vibration-free operation
- Available to fit duct sizes 4” – 12”
- Airflow capacities to 801 cfm
- Energy Efficient
